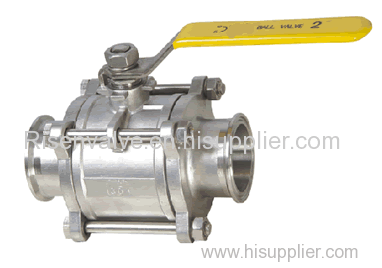

Enlarge STAINLESS STEEL VALVE WITH CLAMP END

STAINLESS STEEL VALVE WITH CLAMP END

Payment Terms: T/T,L/C,WU
Place of Origin: Zhejiang, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: RS1007
Production Capacity: 100000
Delivery Date: 30-45DAYS
Standard or Nonstandard: Standard
Structure: Ball
Temperature of Media: Normal Temperature
Brand Name: RS
Materials: WCB, CF8(304), CF8M(316)
Applicable temperature: -20~232℃
Means of Transport: Ocean
Packing: STANDARD EXPORT PACKING
Power: Hydraulic
Pressure: Medium Pressure
Material: Stainless Steel
Media: Oil
Size: 1/2"-4" Full Port
Nominal pressure: 1000PSI WOG (7.0Mpa)

3-PC STAINLESS STEEL BALL VALVE WITH CLAMP END,STAINLESS STEEL VALVE,BALL VALVE,CAST STEEL VALVE,FULL PORT BALL VALVE,VALVE FOR WATER OR OIL OR STEAM

ITEM NO : ART1007

3-PC STAINLESS STEEL BALL VALVE WITH CLAMP END

Size : 1/2"-4"  Full Port

Materials: WCB, CF8(304), CF8M(316)

Nominal pressure: 1000PSI WOG (7.0Mpa)

Applicable temperature:  -20~232℃

Design standard: API 608 ASTM B 16.34

Suitable medium: Water ,oil, air and some corrosive liquid





MATERIAL LIST                                    DIMENSION (MM)



NR.

DESCRIPTION

MATERIAL

  1

HANDLE COVER

PLASTIC

2

HANDLE

304

 3

GLAND NUT

304

4

STEM NUT

304

5

TRUST WASHER

304

6

STEM PACKING

PTFE

7

THRUST WASHER

PTFE

8

BODY SEAL

PTFE

9

CAP

CF8/CF8M

10

BOLT

304

11

NUT

304

12

BODY

CF8/CF8M

13

SEAT

RPTFE

14

BALL

CF8M

14

STEM

304/316

15

LOCKING DEVICE

304

SIZE

d

D

L

H

S

W

1/2

9.6

25

75

60

20.24

125

3/4

15.9

25

90

64

20.24

125

1

22.2

50.4

100

72

43.6

140

1 1/4

28.5

50.4

110

79

43.6

140

1 1/2

34.9

50.4

125

80

43.6

200

2

47.5

63.9

150

95

56.3

200

2 1/2

60.2

77.4

190

130

70.6

250

3

72.9

90

220

142

83.3

250

4

97.4

118.9

270

170

110.3

290
